Escalator Parts From Iescalator Parts
There are lots kinds of escalator parts for the escalator, and it's not easy if you want to maintenance the escalator, so we would like to help you know all kinds of escalator parts.
An escalator is a moving staircase which carries people between floors of a building or structure. It consists of a motor-driven chain of individually linked steps on a track which cycle on a pair of tracks which keep the step tread horizontal.

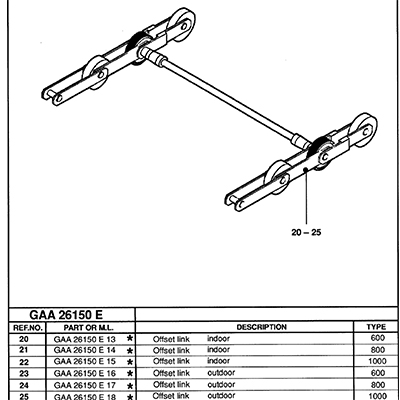

In normal you can see the part number on the escalator maintenance handbook that escalator company will provide to you, like this:
You can see GAA26150E is the part number on the escalator maintanance, then you just provide the part number to us, and it will work.
We summarize 10 kinds of classifications for these escalator parts, beause there are too many escalator spare parts.
1, Escalator Chain System;
2, Escalator Step System;
3, Escalator Handrail System;
4, Escalator Roller;
5, Escalator Comb Plate;
6, Escalator Step Demarcation;
7, Escalator Drive Shaft;
8, Escalator Motor;
9, Escalator Brake System;
10, Other Escalator Parts;
1, Escalator Chain System;
We have few kinds of chains:
(1) Escalator step chain-the main escalator parts for the escalator.
In normal you need test all the data sheets of the step chain, and it will useful if you can provide the part number.
The step chain include the pallet of the chain, step roller, pin of the chain, long shaft.
It use for support and transport escalator step.
(2) Escalator tension chain;
It's using for the step chain that can adjust the level of tightness on the step chain, and it also have the escalator safety swtich to protect the escalator step chain, and you can check the product by the roller size and chain length.
(3) Escalator newel chain;
We also put this escalator newel chain into the escalator chain system, it's using for the transport escalator handrails, and it's easy to confirm the type that you only provide the brand of your escalator, then we will help you to check.
(4) Escalator drive chain;
This chain using for the escalator traction machine's transport, delivery to power from the motor.
2, Escalator Step System;

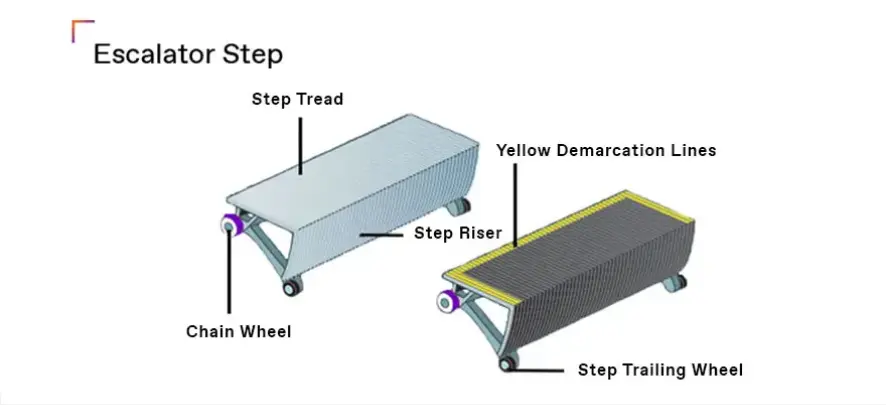

One of the most important parts of the escalator is the step that passengers ride on.
The escalator step is the moving portion on which a passenger is carried safely. The passenger simply places their feet on a step, and the escalator carries them to their destination.
Escalator step demarcation can look different depending on the manufacturer and code jurisdiction, but yellow demarcation lines delineating the division between steps and, sometimes, where the step meets the skirt panels are required.
These measures are taken to ensure that passengers know where to stand for safe transportation.
(1) Escalator step;
Provide the brand of the escalator, then we will check for you.
(2) Moving walk pallet;
You can see the part number on the pallet, then provide this to us.
3, Escalator Handrail System;
We list escalator handrail, escalator inlet, escalator handrail tool, ect in this system.
(1) Escalator handrail;
What is escalator handrail?
Actually it's easy to talk about the escalator, just a moving belt that can ride the escalator.
What's the material of escalator handrail?
Rubber or TPU in normal.
Rubber is the the most on the market.
TPU meanings TPU thermoplastic urethanes, better lustre than rubber.
And sometimes you need buy the material of CSM(chlorosulfonated polyethylene) that you need outdoor escalator handrail or colorful escalator handrail.
How can i choice the escalator handrail?
We will send the detail product specificaiton that made by us, then this will help you.
How can i know the length of the escalator handrail?
We will send the detail document that can help you to test.
(2) Escalator handrail inlet;
You can provide the size and photos, then we can check for you.
(3) Escalator spllicing machine;
This machine will splice the escalator handrails, it's a new bussiness for the local escalator handrail market.
You can contact us for the details.
(4) Escalator handrail tool;
Using for open the escalator handrail.
(5) Escalator handrail drive;
Escalator Liner Handrail Drive Assemble is the drive subassembly for the escalator handrail.
(6) Escalator Handrail Guide Shape;
Between the escalator guide rail and escalator handrail.
4, Escalator roller;
(1) Escalator step roller and step chain roller;
These rollers size as follows:
Diameter.
Width.
Bearing.
(2) Escalator Friction Wheel;
Bring the escalator handrail move, and you need provide the detail size, like diameter, width.
(3) Escalator Handrail V-Belt Pulley;
These rollers size as follows:
Diameter.
Width.
Bearing.
Number of groove.
5, Escalator comb plate;
(1) Escalator comb plate;
Escalator comb plate size as follows:
Number of teeth.
Length of comb plate.
Width of comb plate.
Length of hole distance.
Material.
(2) Escalator comb plate screw;
Using for fixed the comb plate.
(3) Escalator comb plate light;
Check the label on the light.
6, Escalator step demarcation;
(1) Escalator step demarcation strip;
Using for the escalator step.
(2) Escalator step demarcation screw;
Using to fixed the step demarcations.
7, Escalator drive shaft;
(1) Escalator drive shaft;
Pls contact us, then we can check for you.
8, Escalator motor;
(1) Escalator motor;
Provide the nameplate on the motor, then we can check for you.
(2) Escalator Motor Coupling;
Using for the escalator motor.
9, Escalator brake system;
(1) Escalator brake magnet;
Pls provide the nameplate on the brake magnet.
(2) Escalator Machine Brake Arm;
Using for the escalator brake magnet.
10, Other escalator parts;
